JIS Shipboard Cables

Symbols of number of core and main use

FA- Flame retardant (IEC 60332-3 Cat A)
FR- Fire resistance (IEC 60331)
FRA Flame retardant & Fire resistant
S Single core for power and lighting
D Double core for power and lighting
T Three core for power and lighting
F Four core for power and lighting
M Multi core for control and signal(IEC 60332-3 Cat A & IEC 60331)
TT Telephone and instrumentation
P Portable or flexible

Symbols of material

Insulation and Bedding
P : EP Rubber
Y : PVC
C : XLPE
N; PCP

Armoring
C : Steel wire
CB : Copper alloy wire

Others
S : Common shield
-S : Individual shield
E : Earth wire

shipboard cable

0.6/1KV
DPNP, TPNP, FPNP

Standards

JISC 3410-1999
IEC 60332-1

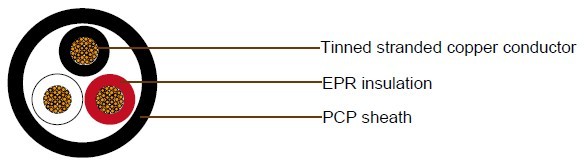

Cable Construction

DPNP, TPNP, FPNP

Conductor	D(T,F)	Tinned annealed stranded copper, class 5 according to IEC 60228
Insulation	P	85°C EPR as per JIS C 3401
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Sheath	NP	PCP as per JIS C 3410
Core identification		2C Black, White 3C Black, White, Red 4C Black, White, Red, Green
Outer sheath color		Black

Cable Parameter

No. of Cores	Conductor			Thick. of insulation	Thick. of Sheath	Nom. overall dia.	Tolerance	Cable Weight
	Size	Construction	O.D	Thick. of insulation	Thick. of Sheath	Nom. overall dia.	Tolerance	Cable Weight
	mm²	No./mm	mm	mm	mm	mm	mm	kg/km
2	0.75	24/0.20	1.13	1	1.4	9.7	0.4	130
2	1	32/0.20	1.27	1	1.4	9.9	0.4	135
2	1.5	30/0.25	1.58	1	1.5	10.8	0.4	165
2	2.5	49/0.25	2.02	1	1.6	11.8	0.5	205
2	4	55/0.30	2.57	1	1.7	13.1	0.5	265
2	6	82/0.30	3.14	1	1.8	14.5	0.6	340
3	0.75	24/0.20	1.13	1	1.4	10.2	0.4	145
3	1	32/0.20	1.27	1	1.5	10.7	0.4	160
3	1.5	30/0.25	1.58	1	1.5	11.4	0.5	190
3	2.5	49/0.25	2.02	1	1.6	12.5	0.5	240
3	4	55/0.30	2.57	1	1.8	14.1	0.6	325
3	6	82/0.30	3.14	1	1.9	15.6	0.6	420
4	0.75	24/0.20	1.13	1	1.5	11.3	0.5	175
4	1	32/0.20	1.27	1	1.6	11.8	0.5	200
4	1.5	30/0.25	1.58	1	1.6	12.2	0.5	225
4	2.5	49/0.25	2.02	1	1.8	14.1	0.6	310
4	4	55/0.30	2.57	1	1.9	15.6	0.6	405
4	6	82/0.30	3.14	1	2	17.2	0.7	525
